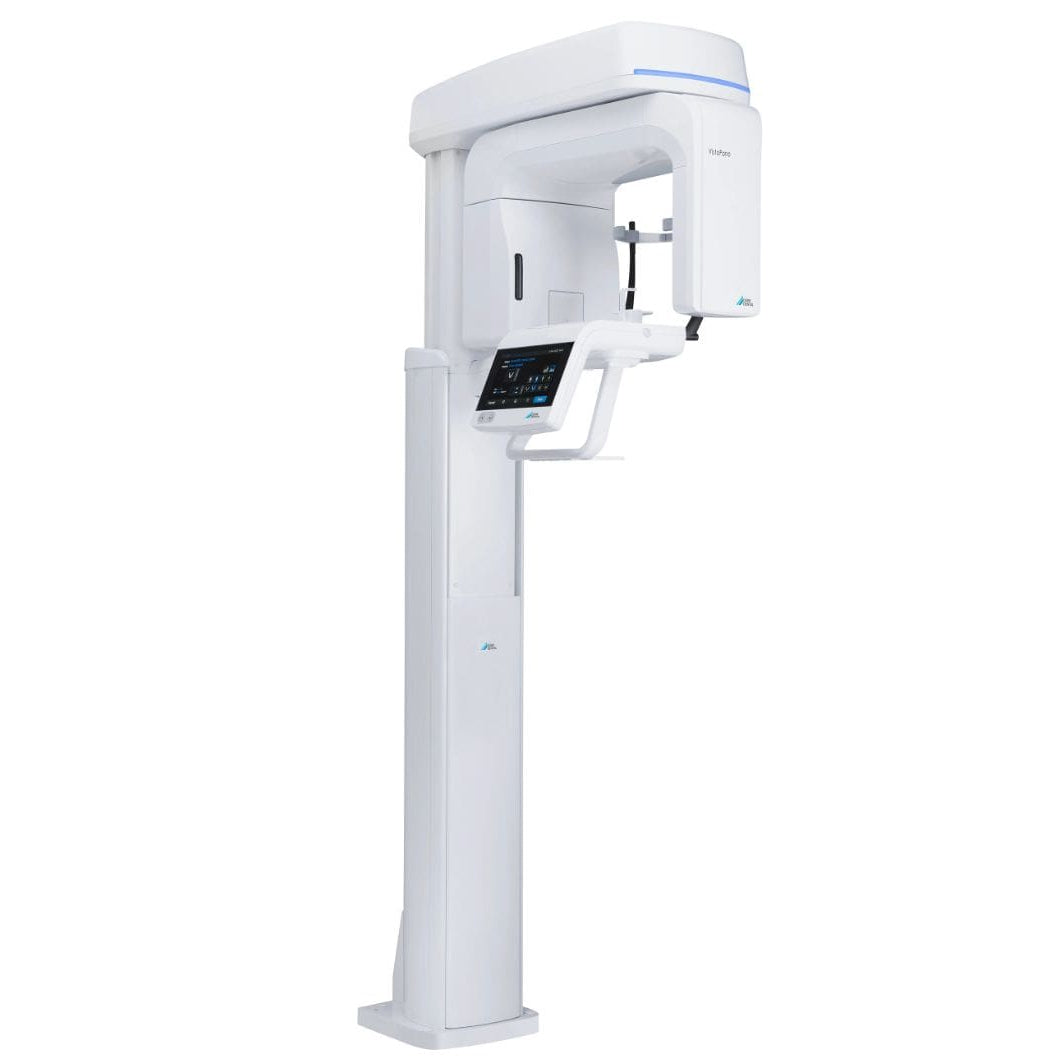

DÜRR VistaPano S 2D PANORAMIC X-RAY

A state-of-the-art digital panoramic 2D X-ray unit designed for extraoral dental imaging and full-jaw diagnostics. Intended for general dental practices, orthodontic clinics and oral-maxillofacial radiology — delivering high-resolution panoramic images with efficient workflow and minimal radiation dose.

Key Features & Benefits

• Delivers sharp panoramic images with optimized contrast and anatomical clarity, supporting accurate diagnostics.
• Fast scanning process reduces patient exposure time and increases efficiency in daily clinical workflow.
• Compact, space-saving design with intuitive touch operation for smooth and ergonomic handling.
• Detector Type: High-resolution CsI (Cesium-Iodide) sensor
• Pixel Size: 100 μm
• Scan Time (Panoramic): Approx. 7 seconds (depending on program)
• X-ray Generator Voltage Range: 60–99 kV
• Tube Focal Spot Size: 0.5 mm (IEC standard)
• Total Filtration: ≥ 2.5 mm Al equivalent
• Magnification Factor: ~1.3×
• Imaging Programs: Standard panoramic, segmented panoramic, child panoramic, orthogonal, TMJ, sinus views
• User Interface: Integrated touchscreen control panel
• Installation Options: Wall-mounted or floor-stand system
• Power Supply: 200–240 V AC, 50/60 Hz
• Dimensions (W × D × H): Approx. 990 × 1220 × 2280 mm
• Weight: Approx. 105–112 kg (unit only), depending on configuration

Packaging:

1 complete panoramic unit per box, including positioning accessories and user documentation.
