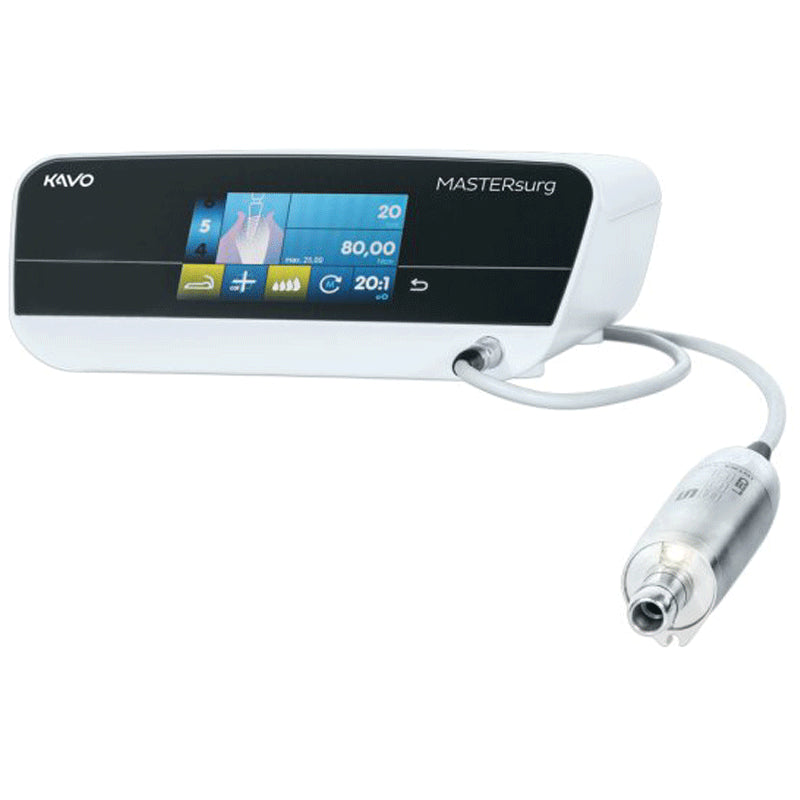

KaVo MASTERsurg LUX

Advanced surgical and implantology motor system designed for precise control of speed and torque during oral and maxillofacial procedures. The MASTERsurg LUX offers intuitive operation via a color touchscreen and wireless foot control, ensuring accuracy, safety, and comfort for the operator.

Benefits & Key Features

• Automatic calibration guarantees absolute precision in speed and torque for maximum treatment safety.
• Compact, lightweight motor provides exceptional handling and balance during surgery.
• High performance output delivers up to 80 Ncm torque at the instrument, supporting a wide range of implant and surgical applications.
• User-friendly touchscreen interface allows easy programming of up to 10 customized programs with 10 steps each.
• Fully sterilizable motor and hoses ensure optimal hygiene and long-term reliability.
• Wireless foot control enhances flexibility and ergonomic workflow.
• Motor Type: Electric, brushless, sterilizable surgical motor
• Maximum Motor Torque: 5.5 Ncm
• Speed Range: 0 – 40,000 rpm
• Maximum Output Torque at Instrument: Up to 80 Ncm (depending on transmission ratio)
• Display: Full-color touchscreen interface
• Programs: 10 customizable programs, each with up to 10 procedural steps
• Calibration: One-touch auto calibration for torque and speed accuracy
• Foot Control: Wireless multifunction foot pedal
• Sterilization: Motor and hoses suitable for thermal disinfection and autoclaving
• Data Management: Integrated SD memory card for storage and transfer of settings
• Dimensions / Weight: Compact and lightweight for easy installation and portability

Packaging:1 complete surgical motor system per box, including motor, control unit, irrigation set, wireless foot control, and accessories.
